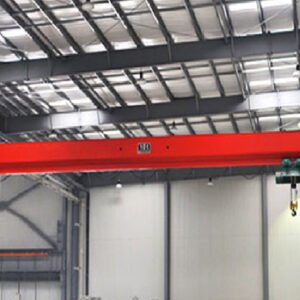

A single girder overhead crane is an efficient and versatile lifting solution, perfect for handling small to medium loads in tight spaces. Whether you need a crane for your factory, workshop, or warehouse, this crane design offers superior space optimization and smooth operation. The single girder configuration provides a cost-effective and reliable solution for tasks that require high precision and minimal headroom, making it ideal for a wide range of industries. At Yonghao Crane Co., Ltd., we offer single girder cranes designed for durability, flexibility, and ease of use, ensuring your lifting operations run smoothly and safely.
Lifting Rope: Typically equipped with standard synthetic rope, with the option to upgrade to high-strength steel wire rope for more demanding lifting tasks.
Trolley: This component transports the hoist horizontally along the crane’s main girder, available in single or double girder configurations to suit different applications.
Main Girder: The main structural beam that supports both the hoist and the trolley. It can be designed in either profile girder or box girder styles for varying span requirements.
End Carriages: These are mounted at the ends of the crane legs and house the wheels that allow the crane to move along rails or across the ground.
Hooks: Manufactured in compliance with DIN 15401 standards, ensuring secure and reliable lifting operations.
Control System: The crane can be operated using pendant control, wireless remote control, or equipped with integrated smart features for advanced control.
Electrical System: Includes the motors, wiring, and optional smart features, such as hook centering and obstacle detection, that enhance the crane’s functionality and safety.
| Parameter | Details |
|---|---|
| Lifting Capacity | Up to 50 tons |
| Lifting Height | Up to 24 meters |
| Span | Up to 30 meters |
| Crane Type | Single Girder or Double Girder |
| Girder Design | Profile Girder or Box Girder |
| Lifting Rope | Synthetic Rope (Standard), Steel Wire Rope (Optional) |
| Hoisting Motor | 2-Speed (Standard), Variable Frequency (Optional) |
| Operating Temperature | +5°C to +40°C |
| Paint Coating | 70 µm epoxy resin powder-coated anodized aluminum |
| Hook Standard | DIN 15401 |
| Trolley Type | Compatible with Single or Double Girder |
| Power Supply | Flat Cable or Drag Chain |
| Control Options | Pendant Control or Wireless Remote Control |
| Smart Features | Hook Centering, Obstacle Prevention, Auto-Follow Function |
| Environment | Suitable for Indoor and Outdoor Applications |
Impressive Lifting Capacity: Ranges from 1 ton to several tons, with the possibility of custom configurations for specialized applications requiring even higher capacities.
Reliable in Demanding Conditions: Designed to function effectively even in high-frequency and high-intensity environments, ensuring consistent performance under challenging conditions.
Extended Durability: The steel wire rope is highly resistant to wear and tear, making it perfect for long-term, continuous operations with minimal maintenance.
Efficient Lifting Speed: Delivers quick lifting speeds, significantly enhancing productivity, particularly in tasks involving long lifts.
Customizable Design: Offers a wide range of design options that can be tailored to fit different rail systems and adapt to various work environments.
| Feature | Wire Rope Hoist Crane | Chain Hoist Crane | Jib Crane | Workstation Crane |
|---|---|---|---|---|
| Lifting Capacity | Medium to Heavy (up to 80 tons) | Light to Medium (typically <5 tons) | Light (up to 2 tons) | Light (up to 2 tons) |
| Lifting Speed | Fast | Moderate | Slow to Moderate | Moderate |
| Durability | High (continuous use) | Medium | Medium | Medium |
| Hoist Type | Wire rope (synthetic/steel) | Chain | Chain or manual | Chain |
| Best Application | Industrial plants, manufacturing lines | Warehouses, maintenance | Workstations, local lifting | Assembly lines, labs |
| Installation | Requires runway or gantry | Simple install | Wall/floor mounted | Modular structure |
| Customization | High | Medium | Low | Medium |
Steel and metal processing plants
Equipment manufacturing workshops
Heavy machinery assembly lines
Infrastructure and construction projects
Warehousing and logistics centers
Power plants and mining operations
