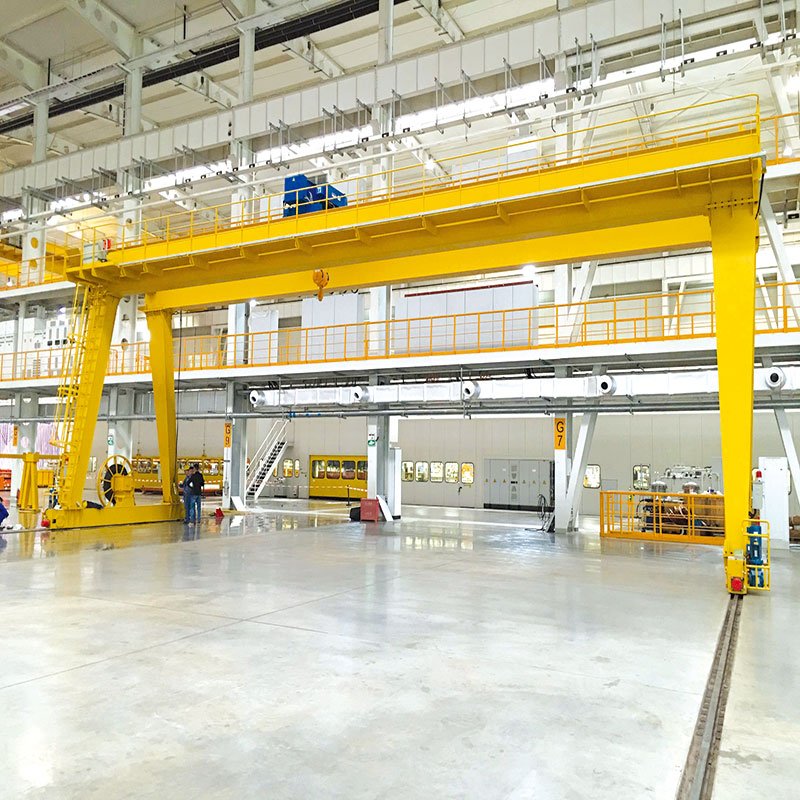

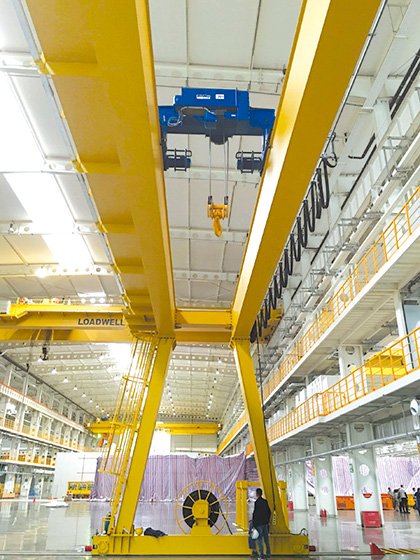

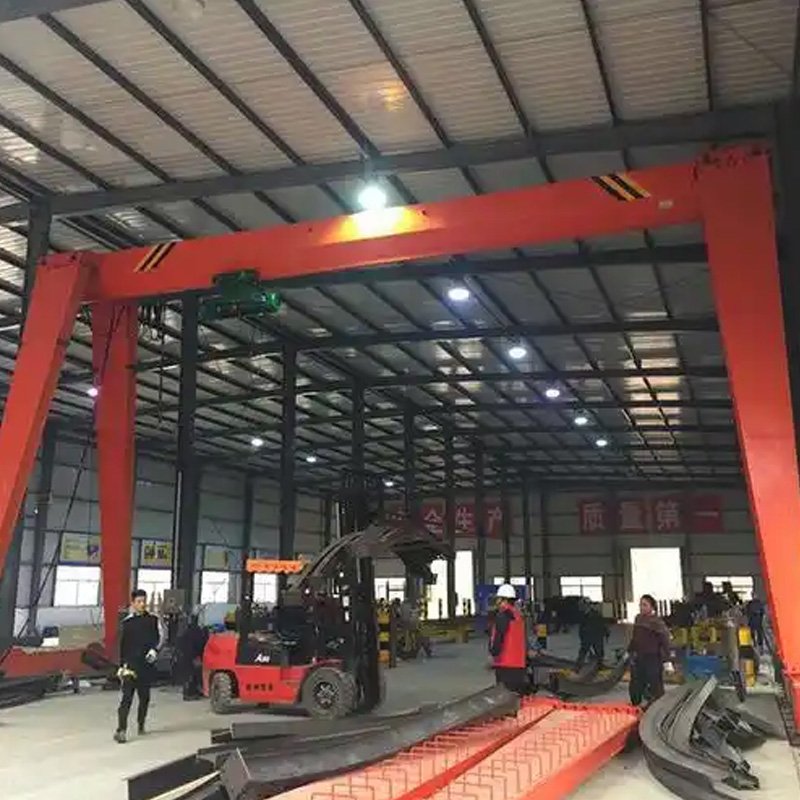

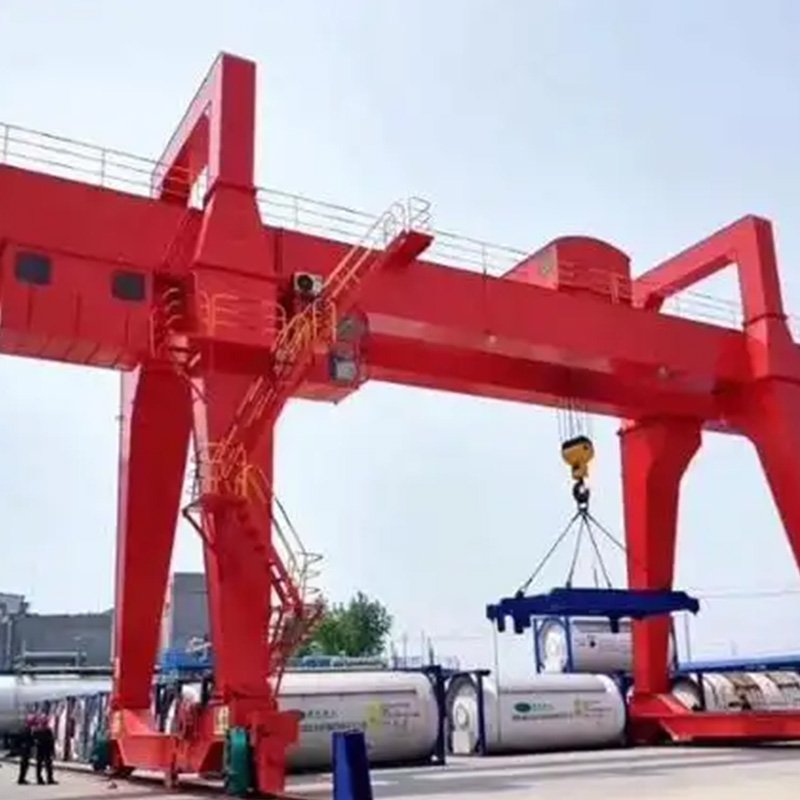

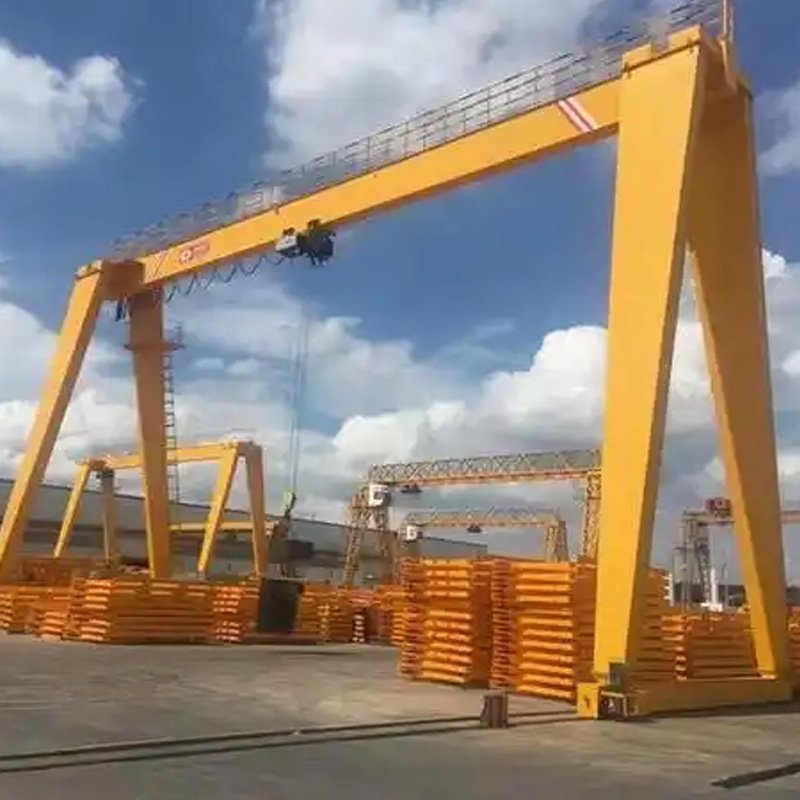

Gantry cranes are a type of overhead crane system where the entire structure is supported by freestanding legs that travel on ground-level rails or wheels. Unlike bridge cranes that depend on building columns or runways, gantry cranes are self-supporting and are ideal for outdoor environments or applications where overhead support structures are not available. They are widely used in shipyards, construction sites, container yards, and manufacturing facilities requiring heavy lifting and long-span handling.
A gantry crane consists of several essential structural and mechanical components:
Main Girder: The horizontal beam that supports the hoisting trolley. It can be a single or double girder design.
Supporting Legs: Vertical columns that support the main girder and connect to the ground rails or wheels.

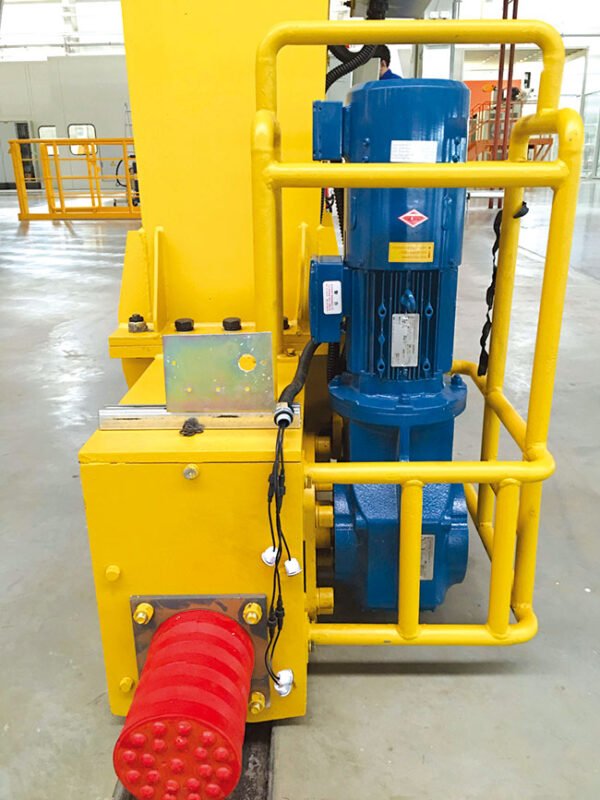

End Carriages / Wheels: Located at the bottom of the legs, these allow the crane to travel along the rails or ground surface.
Hoisting Trolley: Moves along the girder and carries the hoist used for lifting and lowering loads.
Hoist: Can be a wire rope or chain hoist; it performs the lifting function.
Electrical System: Powers all crane movements and includes control panels, motors, and cabling.
Control Options: Includes pendant control, wireless remote control, or operator cabin depending on operation needs.
| Item | Specifications |
| Lifting Capacity | ≤ 200 tons |
| Lifting Height | ≤ 36 meters |
| Span | ≤ 50 meters |
| Crane Options | Single Girder / Double Girder |
| Girder Design | Profile or Box Girder |
| Rope Options | Synthetic Rope (Standard) / Wire Rope (Optional) |
| Hoisting Motor | 2-Speed Hoisting (Standard) / Variable Frequency Drive (Optional) |
| Temperature Range | +5°C to +40°C (Standard) |
| Paint Coating | 70 µm Epoxy Powder Coating with Anodized Aluminum Frame |
| Hooks Standard | DIN 15401 |
| Trolley Type | Single Girder or Double Girder Crane |
| Power Supply | Drag Chain or Flat Cable |
| Control Options | Pendant Control / Remote Control / Operator Cabin |
| Integrated Smart Features | Hook Centering, Obstacle Prevention, Auto-Follow |
| Environment | Indoor & Outdoor |
High Lifting Capacity: Handles heavy loads up to 200 tons.

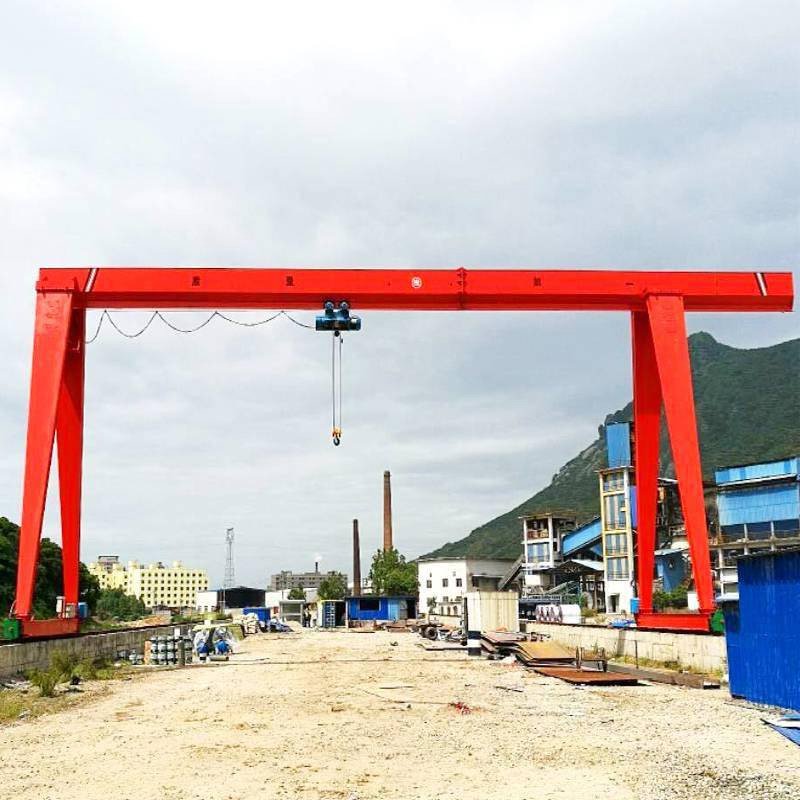

Outdoor Application: Perfect for environments without overhead structure.
Customizable Design: Adaptable to different spans, heights, and rail types.
Cost-Effective Installation: No need for building support beams.
Versatile Control Options: Supports manual, remote, and cabin operation.
Efficient Handling: Fast lifting speeds and smart features improve productivity.

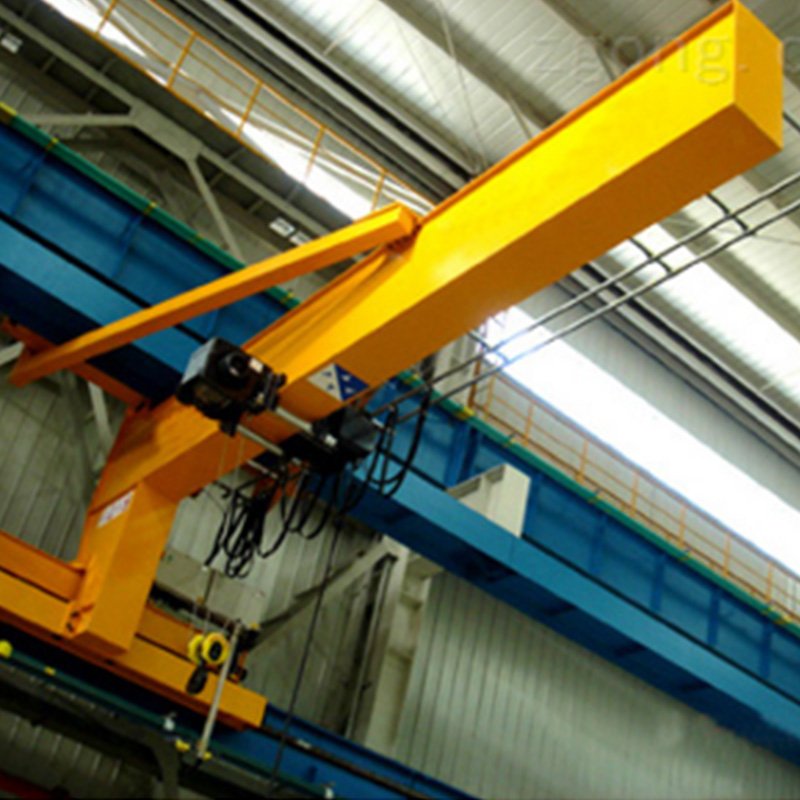

| Feature | Gantry Crane | Overhead Crane | Jib Crane |
|---|---|---|---|
| Support Type | Freestanding legs on ground | Supported by building structure | Mounted to wall or column |
| Installation | Easy, no building structure required | Requires runway beams | Fixed position |
| Span | Up to 50 meters | Up to 30 meters | Limited |
| Load Capacity | Very high (up to 200 tons) | High | Low to moderate |
| Mobility | Excellent (rail or tire mounted) | Fixed to runway beams | Limited swivel range |
| Outdoor Use | Ideal | Limited | Rare |
Shipbuilding and Repair Yards
Steel Fabrication Plants

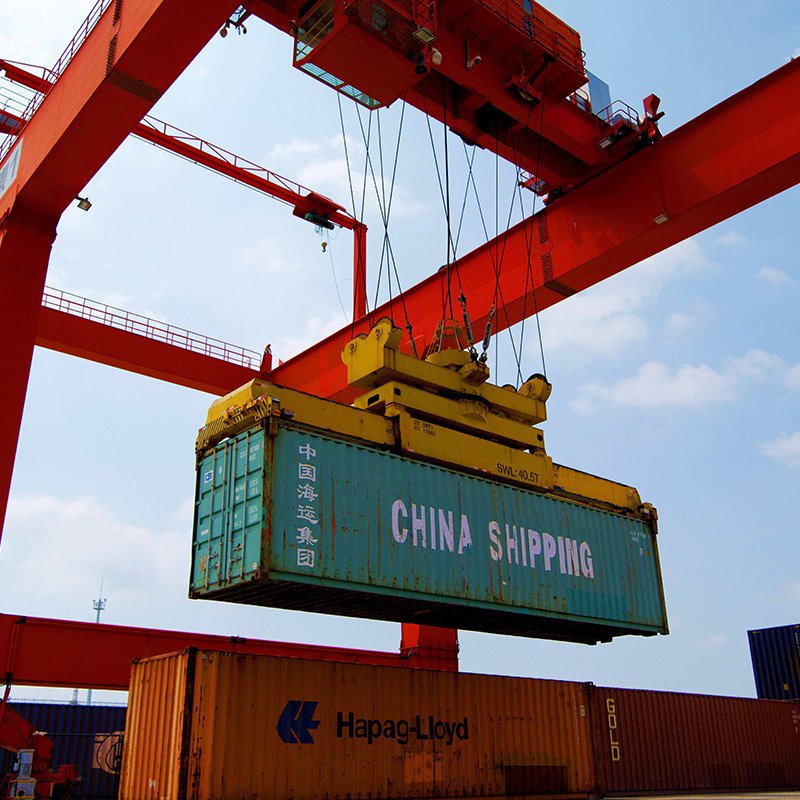

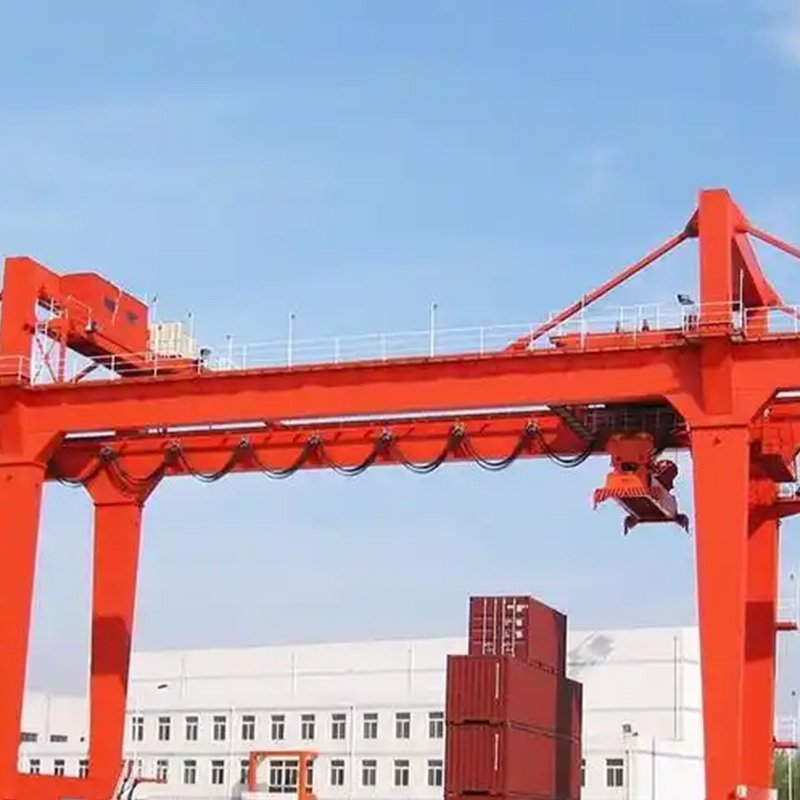

Container Loading/Unloading at Ports
Precast Concrete Assembly Yards
Large Equipment Assembly Areas
Heavy Industrial Warehouses
