5 Ton Overhead Crane Cost

Main Components

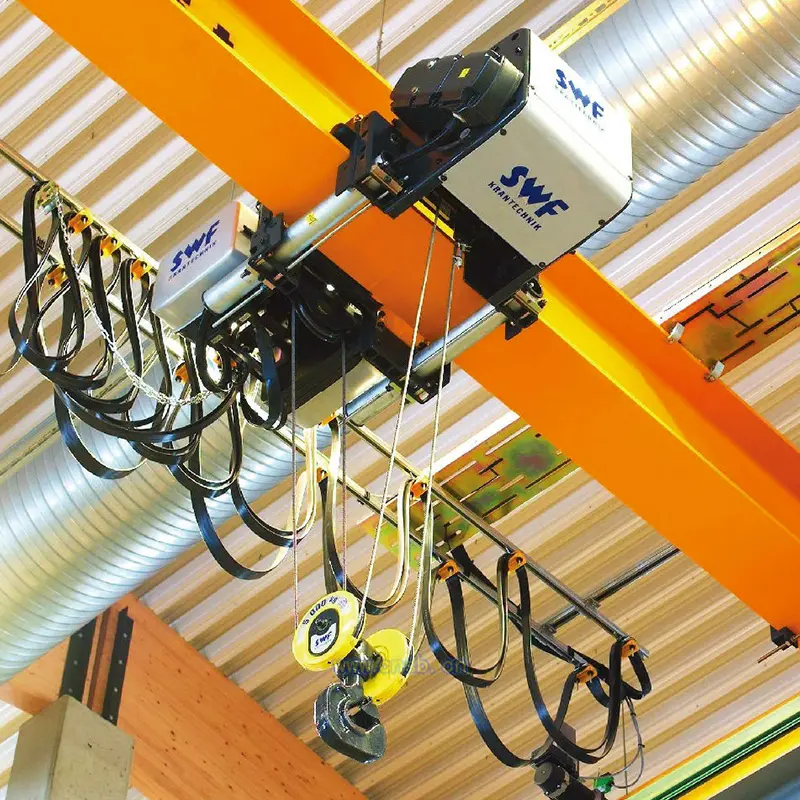

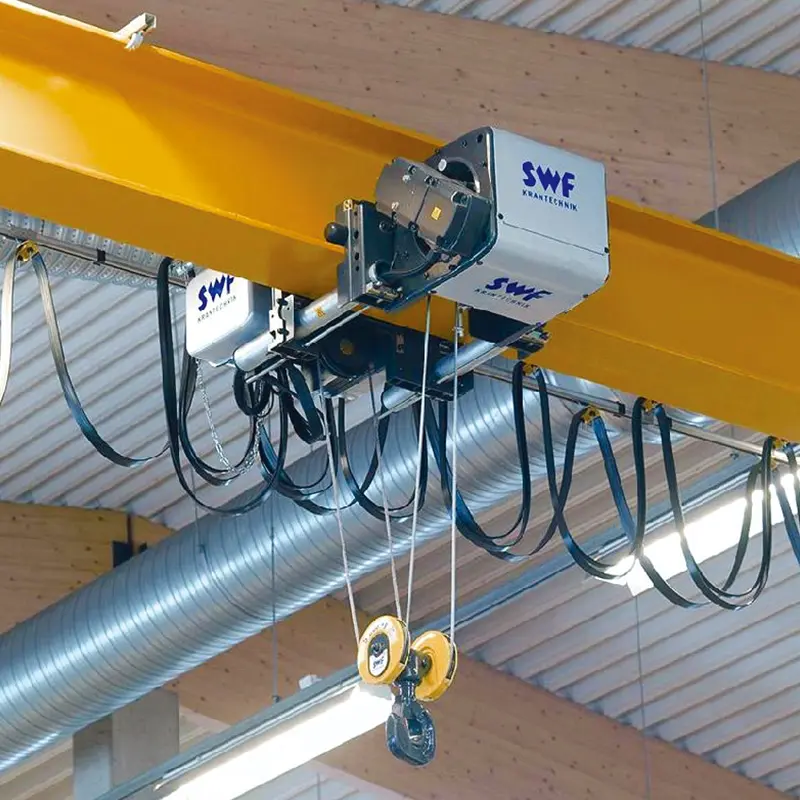

• Wire Rope Hoist: The primary lifting mechanism that operates with a drum system, enabling the wire rope to raise and lower loads.

• Lifting Rope: Comes standard with synthetic rope, with the option of upgrading to durable steel wire rope for more demanding lifting needs.

• Trolley: Supports and transports the hoist horizontally across the crane girder, available in both single-girder and double-girder setups.

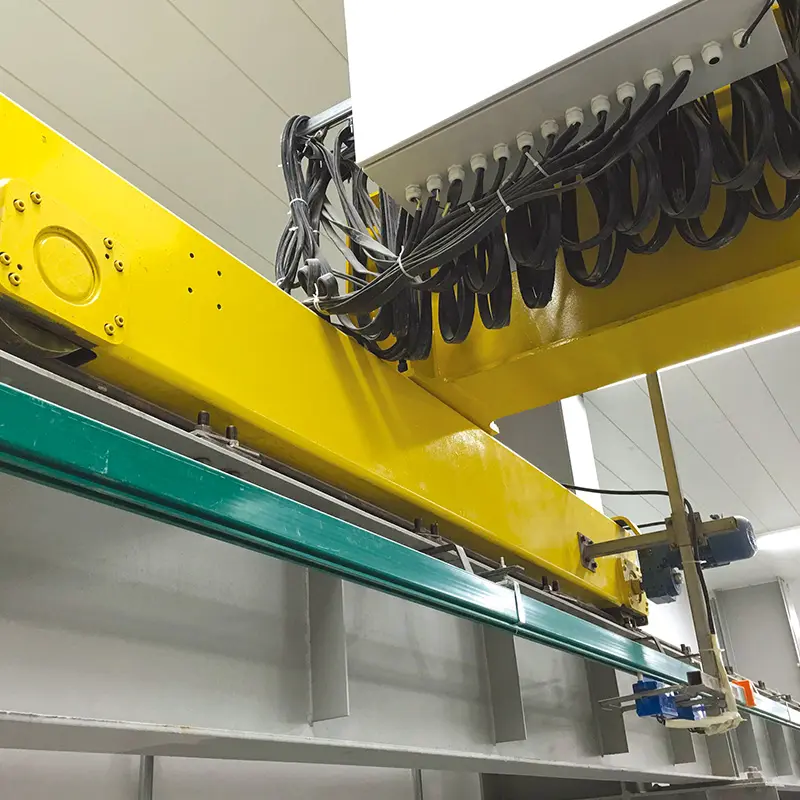

• Main Girder: A structural beam designed to hold the hoist and trolley; can be manufactured as either a profile girder or a box girder.

• End Carriages: Fitted with wheel assemblies that allow smooth crane travel along fixed rails.

• Hooks: Designed in compliance with DIN 15401 standards to ensure safe and secure load handling.

• Control System: Flexible operation through pendant control, wireless remote, or advanced smart-control integrations.

• Electrical System: Equipped with motors, cabling, and optional intelligent features such as automatic hook centering and obstacle detection.

Technical Specifications

Key Advantages

• High Lifting Capacity: Typically from 1 ton up to dozens of tons, or even higher for special applications

• Suitable for Complex Working Conditions: Performs reliably under high-frequency and high-intensity operations

• Long Service Life: Steel wire rope offers excellent wear resistance, ideal for long-term continuous use

• Fast Lifting Speed: Ensures higher efficiency, especially beneficial for long lifting strokes

• Highly Customizable: Flexible design options to suit different rail systems and working environments

Comparison with Other Cranes

• Wire Rope Hoist Crane

  • Lifting Capacity: Medium to heavy, up to 80 tons

  • Lifting Speed: Fast

  • Durability: High, suitable for continuous operation

  • Hoist Type: Wire rope (synthetic or steel)

  • Best Application: Industrial plants, production lines

  • Installation: Requires runway or gantry system

  • Customization: High

• Chain Hoist Crane

  • Lifting Capacity: Light to medium, typically under 5 tons

  • Lifting Speed: Moderate

  • Durability: Medium

  • Hoist Type: Chain

  • Best Application: Warehouses, maintenance facilities

  • Installation: Simple and straightforward

  • Customization: Medium

• Jib Crane

  • Lifting Capacity: Light, up to 2 tons

  • Lifting Speed: Slow to moderate

  • Durability: Medium

  • Hoist Type: Chain or manual

  • Best Application: Workstations, localized lifting tasks

  • Installation: Wall or floor-mounted

  • Customization: Low

• Workstation Crane

  • Lifting Capacity: Light, up to 2 tons

  • Lifting Speed: Moderate

  • Durability: Medium

  • Hoist Type: Chain

  • Best Application: Assembly lines, laboratories

  • Installation: Modular structure

  • Customization: Medium

Application Industry

Overhead cranes are widely used across various industries that require safe and efficient handling of heavy loads. Common application areas include:

• Steel and metal processing plants

• Equipment manufacturing workshops

• Heavy machinery assembly lines

• Infrastructure and construction projects

• Warehousing and logistics centers

• Power plants and mining operations

With flexible configuration options and intelligent features, the wire rope hoist crane system is an ideal solution for projects that demand performance, reliability, and safety.
