1 Ton JIB Crane Hoist

Main Components

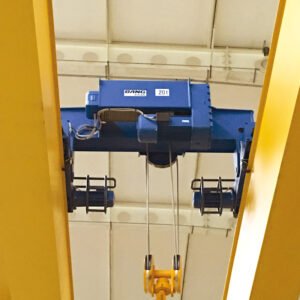

• Wire Rope Hoist: The core lifting mechanism, utilizing a drum to wind and release the wire rope, enabling precise vertical movement.

• Lifting Rope: Comes with a standard synthetic rope, with the option to upgrade to high-strength steel wire rope for demanding lifting tasks.

• Trolley: Supports the hoist and travels horizontally along the girder; available in both single-girder and double-girder configurations.

• Main Girder: The primary horizontal beam that bears the hoist and trolley; offered in either profile girder or box girder types.

• End Carriages: Contain the wheel assemblies that guide the crane’s movement along the rail tracks.

• Hooks: Manufactured in compliance with DIN 15401 standards to ensure safe and reliable lifting.

• Control System: Operated through pendant control, wireless remote, or advanced integrated smart technologies.

• Electrical System: Comprises motors, cabling, and optional intelligent features such as hook centering and anti-collision functions.

Technical Specifications

• Lifting Capacity: Handles loads up to 50 tons

• Lifting Height: Maximum reach of 24 meters

• Span: Extends up to 30 meters

• Crane Configuration: Available in single girder or double girder types

• Girder Construction: Choice of profile girder or box girder design

• Lifting Rope: Supplied with synthetic rope as standard; steel wire rope optional for heavy-duty use

• Hoisting Motor: Equipped with 2-speed drive by default; variable frequency drive available as an option

• Operating Temperature Range: From +5°C to +40°C

• Surface Coating: Finished with 70 µm epoxy resin powder-coated anodized aluminum

• Hook Specification: Manufactured according to DIN 15401 standard

• Trolley Design: Compatible with both single girder and double girder setups

• Power Supply Options: Flat cable or drag chain systems

• Control Modes: Operated by pendant control or wireless remote

• Smart Functions: Includes hook centering, obstacle avoidance, and auto-follow features

• Application Environment: Designed for indoor and outdoor operations

Key Advantages

• High Lifting Capacity: Typically from 1 ton up to dozens of tons, or even higher for special applications

• Suitable for Complex Working Conditions: Performs reliably under high-frequency and high-intensity operations

• Long Service Life: Steel wire rope offers excellent wear resistance, ideal for long-term continuous use

• Fast Lifting Speed: Ensures higher efficiency, especially beneficial for long lifting strokes

• Highly Customizable: Flexible design options to suit different rail systems and working environments

Comparison with Other Cranes

Application Industry

JIB hoist cranes are widely used across various industries that require safe and efficient handling of heavy loads. Common application areas include:

• Steel & metal fabrication facilities

• Equipment production workshops

• Large-scale machinery assembly areas

• Construction and infrastructure projects

• Storage warehouses & logistics hubs

• Power generation plants and mining sites

With flexible configuration options and intelligent features, the jib hoist crane system is an ideal solution for projects that demand performance, reliability, and safety.
